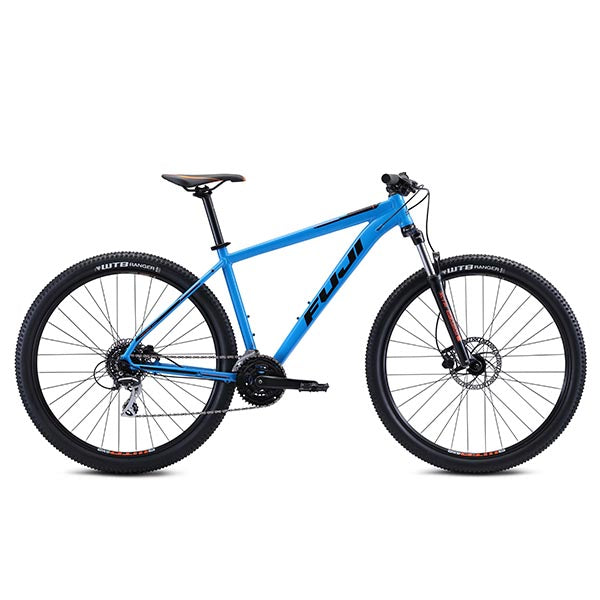

A staple in the Fuji mountain-bike lineup, available in 29" or 27.5" wheel sizes, the Nevada combines a tried and true hardtail frame and solid components to take your off-road adventures to the next level.
S, M, L, XL, XXL
Satin Gray, Cyan
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
SR Suntour SF19-XCT30-HLO-DS-29, hydraulic lockout, 100mm
Prowheel, 42/34/24T
Sealed cartridge bearing
Resin platform
Shimano Tourney
Shimano Acera
Shimano Altus, Rapid Fire, 3 x 8-speed
Shimano HG31, 11-34T
KMC HV700
WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes
WTB Ranger Comp, 29" x 2.25", 27tpi
Tektro HD-M275, 180/160mm rotors
Tektro HD-M275
1 1/8" sealed bearings
Fuji flat bar, alloy, 710mm
Fuji, forged aluminum, +/-6°
Fuji Performance Grip
Fuji Performance Saddle
Fuji, alloy, 30.9mm
14.93 kg / 32.92 lbs
| Size | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Bike Size | 15" | 17" | 19" | 21" | 23" | |
| A | Seat Tube, Center To Top | 370 | 420 | 470 | 520 | 560 |
| C | Top Tube, Effective | 591 | 611 | 636 | 653 | 672 |
| D | Head Tube Length | 95 | 105 | 110 | 120 | 130 |
| E | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| G | Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| H | Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| I | Wheelbase | 1113.5 | 1134 | 1160 | 1177.5 | 1197 |
| J | Bottom Bracket Drop | 55 | 55 | 55 | 55 | 55 |
| K | Fork Offset | 46 | 46 | 46 | 46 | 46 |
| M | Stack | 611.5 | 621 | 625.5 | 635 | 644 |
| N | Reach | 404 | 421 | 445 | 459 | 475 |
| O | Standover | 781 | 809 | 834.5 | 862 | 886 |
I want to like the Nevada. It rides well, I like how it handles and how it looks. The reality is that I have dealt with a large number of parts failing in quick succession. Within three weeks of only riding on paved trails the derailleur hanger snapped, causing the derailleur to get tangled in the chain. My bike shop gave me a free tune up and replaced the parts (front and rear derailleur) and said that they had never seen a new bike fail so bad. Somehow the chain has also gotten stuck between the frame and the crankset, scraping the frame. Now, three months after buying it, the bottom bracket appears to be failing, I have had to disassemble and reassemble the front shifter when it stopped working, and the disk breaks appear to be rubbing on the pads.
All said, these are cheap parts that won't cost much to replace, and really you should be upgrading them anyways, but it's pretty disheartening to deal with this on a new bike. I've dealt with fewer issues on a 10 year old bike with the same group sets. I had planned on getting a second Nevada for winter commuting but I will be looking elsewhere now.
Hello and thank you for your feedback. We would really appreciate the opportunity to learn more about these issues and how we can make things right. Please email customerservice@fujibikes.com and we would be happy to look further into this.
Thank you for your business!
