Jari Carbon CX

$3,699.99
Size Guide
Size
Color: Eggplant

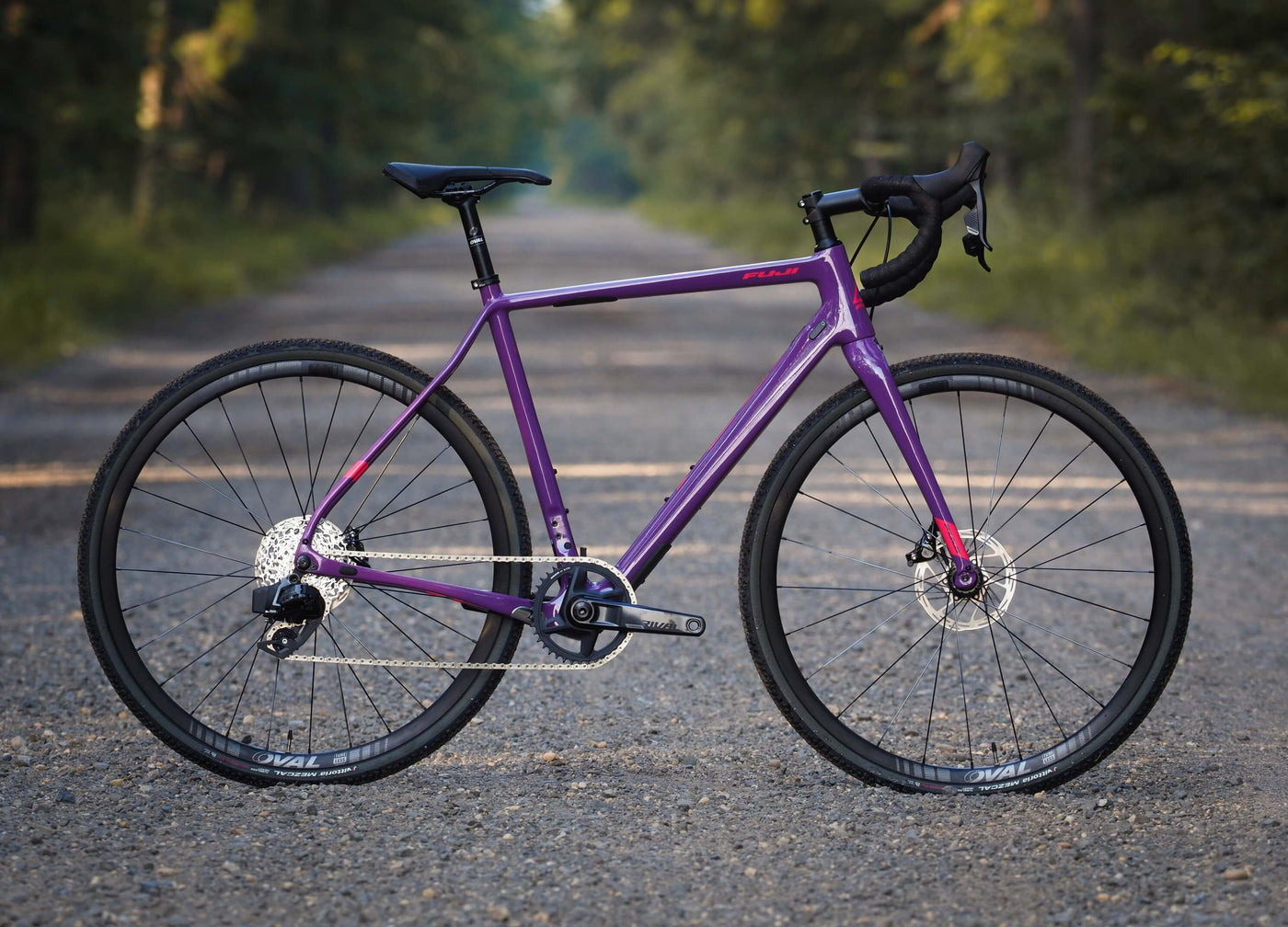

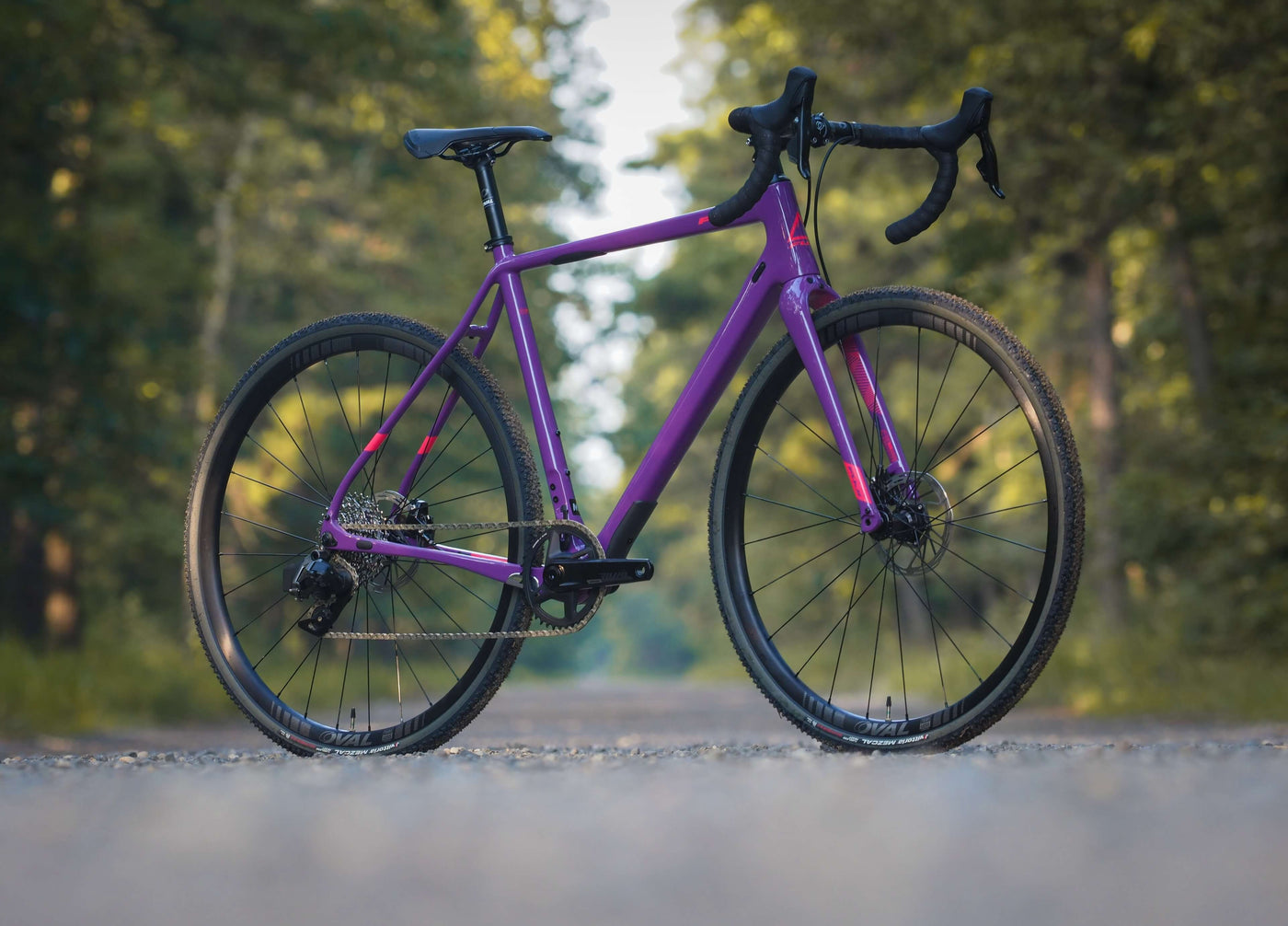

The Jari Carbon CX is anything but a one-trick pony - this bike shines on the cross course but is ready to take on a gravel race or go off on an adventure at a whim. With lively handling, obstacle-clearing BB height, and massive tire clearance you'll experience the agility and versatility many of today's gravel bikes are lacking. Punchy and quick while stable and comfortable at the same time, the Jari Carbon CX is the perfect weapon for race day, mixed terrain, gravel endurance rides, and getting out and exploring.
Learn More
Technical Specifications

  • Sizes

    XS (49cm), S (52cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)

    Color(s)

    Eggplant

    Frame

    C15 ultra high-modulus schedule process. High compaction molding. Micro-suspension rear triangle. English threaded BB, 142x12 thru-axle.

    Fork

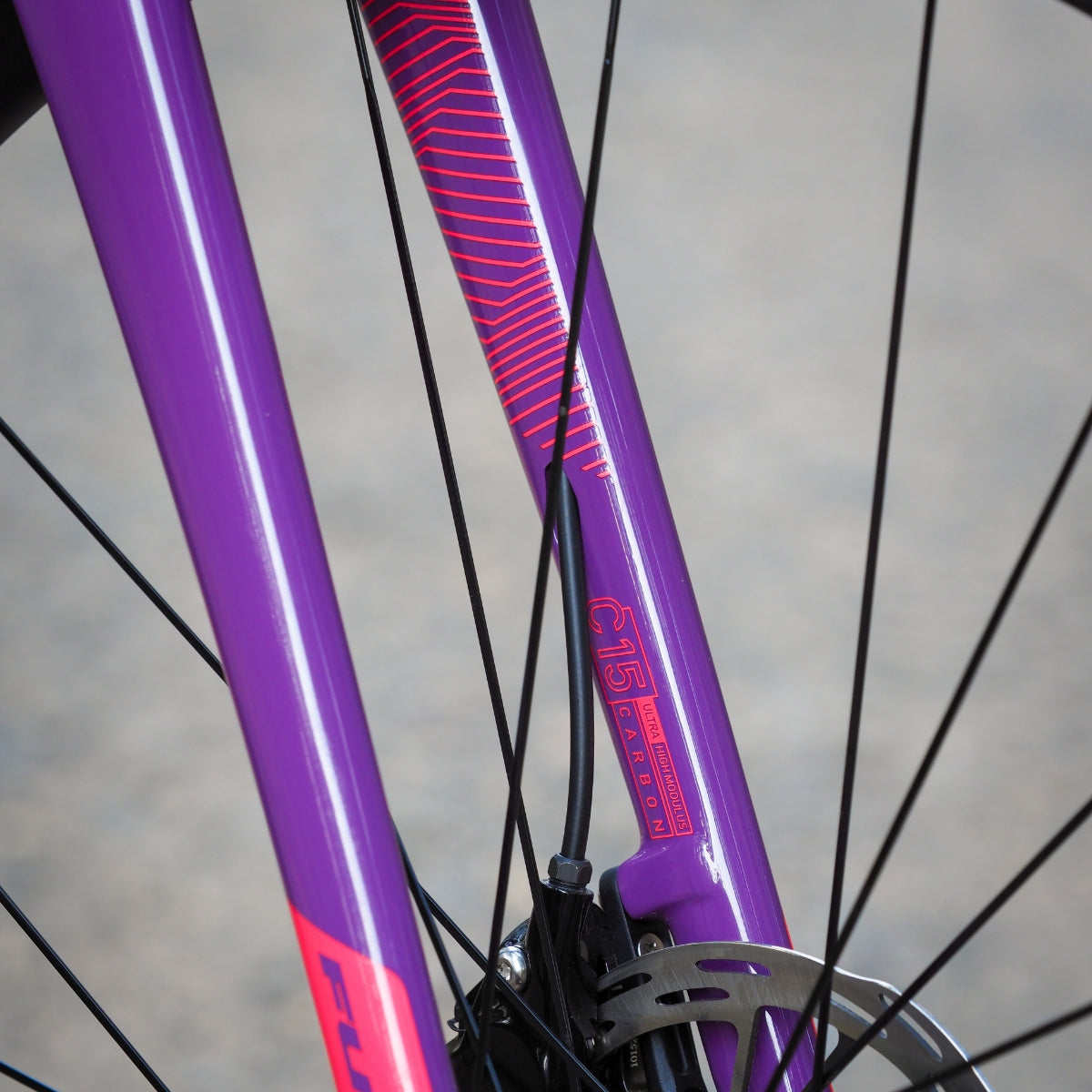

    C15 ultra high-modulus schedule process, tapered steerer, 100x12mm thru-axle

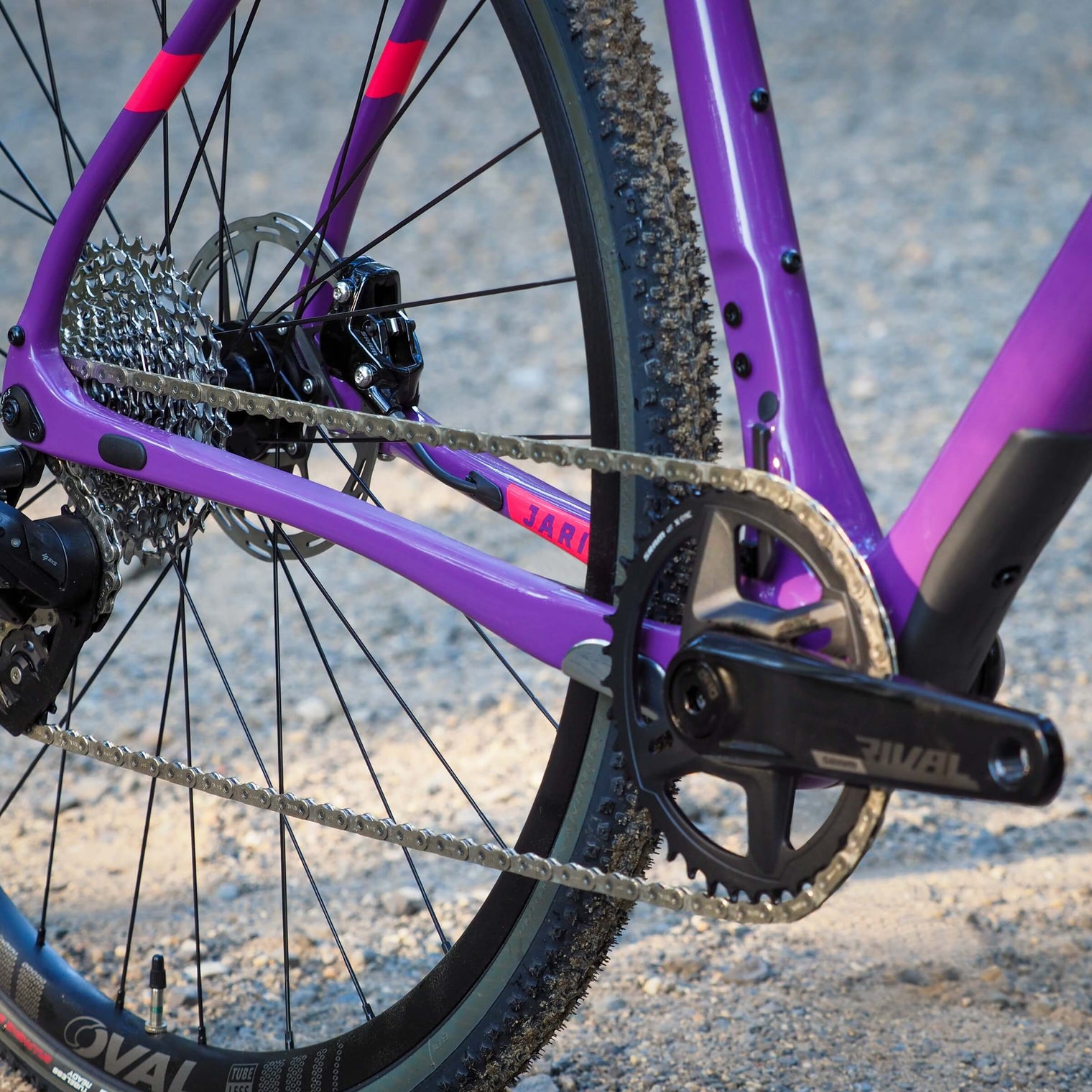

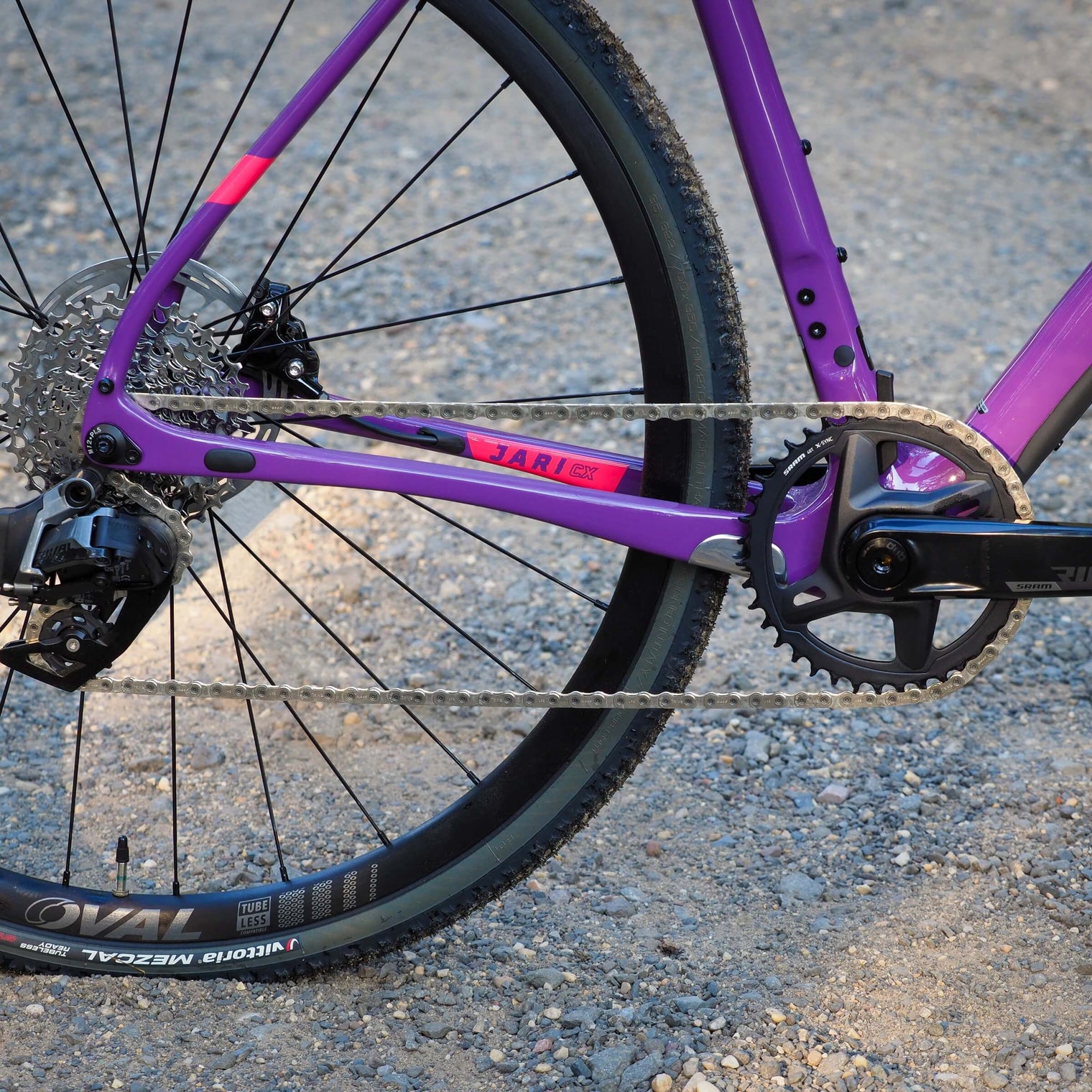

    Crankset

    SRAM RIVAL 1X12 40T DUB

    Bottom Bracket

    SRAM DUB English threaded

    Rear Derailleur

    SRAM Rival AXS 1x12

    Shifters

    SRAM Rival AXS Hydraulic

    Cassette

    SRAM XG1250 10-36 12spd

    Chain

    SRAM Rival 12spd

  • Wheelset

    Oval Concepts 524 Disc, 24/28H, 21mm internal width

    Tires

    Vittoria Mezcal, G2.0, 700 x 35c

    Tubes

    700 x 35 presta

    Brakeset

    SRAM Hydraulic FM, 160mm rotor

    Brake Levers

    SRAM Rival AXS Hydraulic

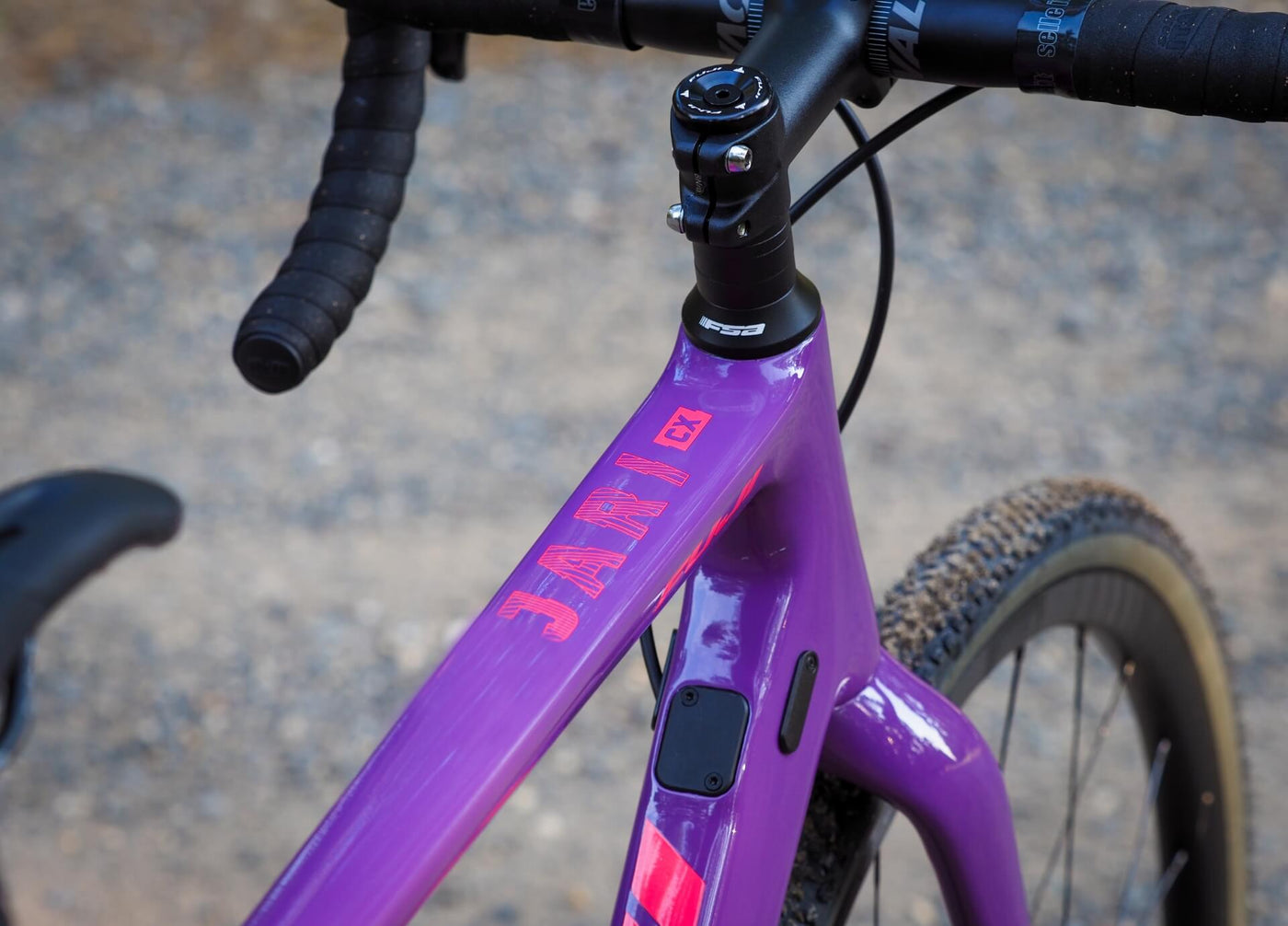

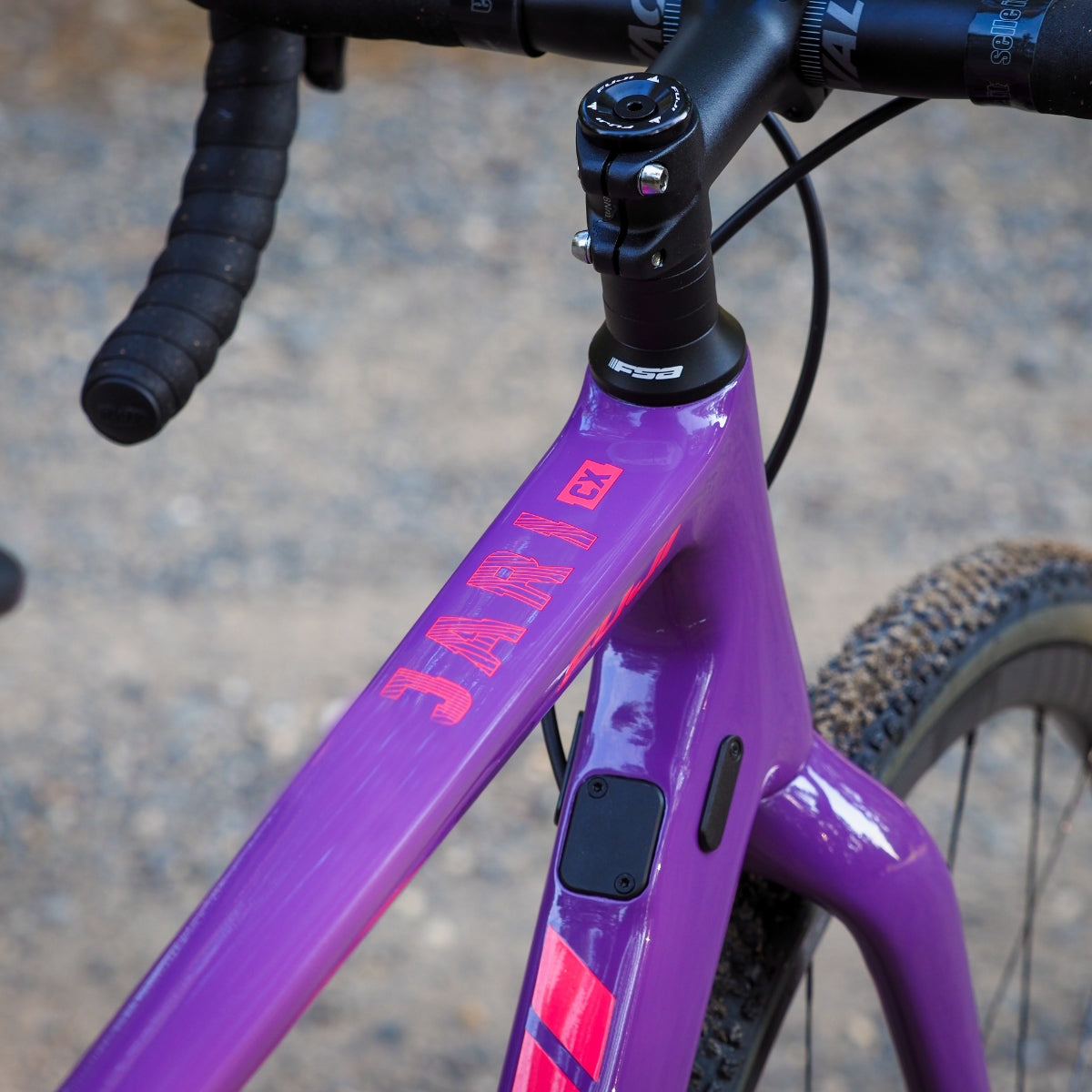

    Headset

    FSA, 1 1/8” upper - 1 1/2” lower, integrated

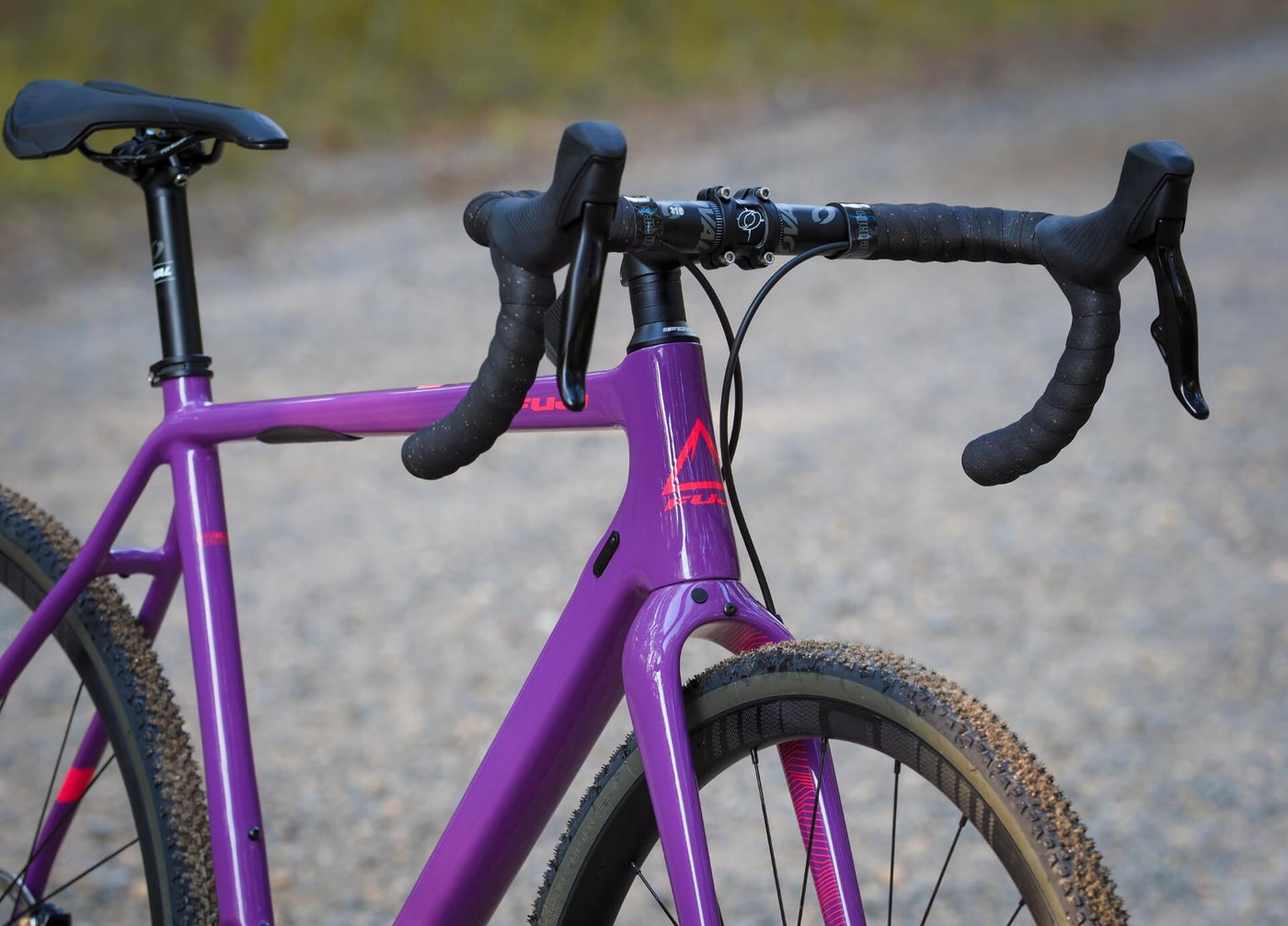

    Handlebar

    Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep

    Stem

    Oval Concepts 313, 3D-forged 6061, +/-6°

    Tape

    Selle Italia Smootape Corsa

    Saddle

    Selle Italia X-LR Air Cross Light

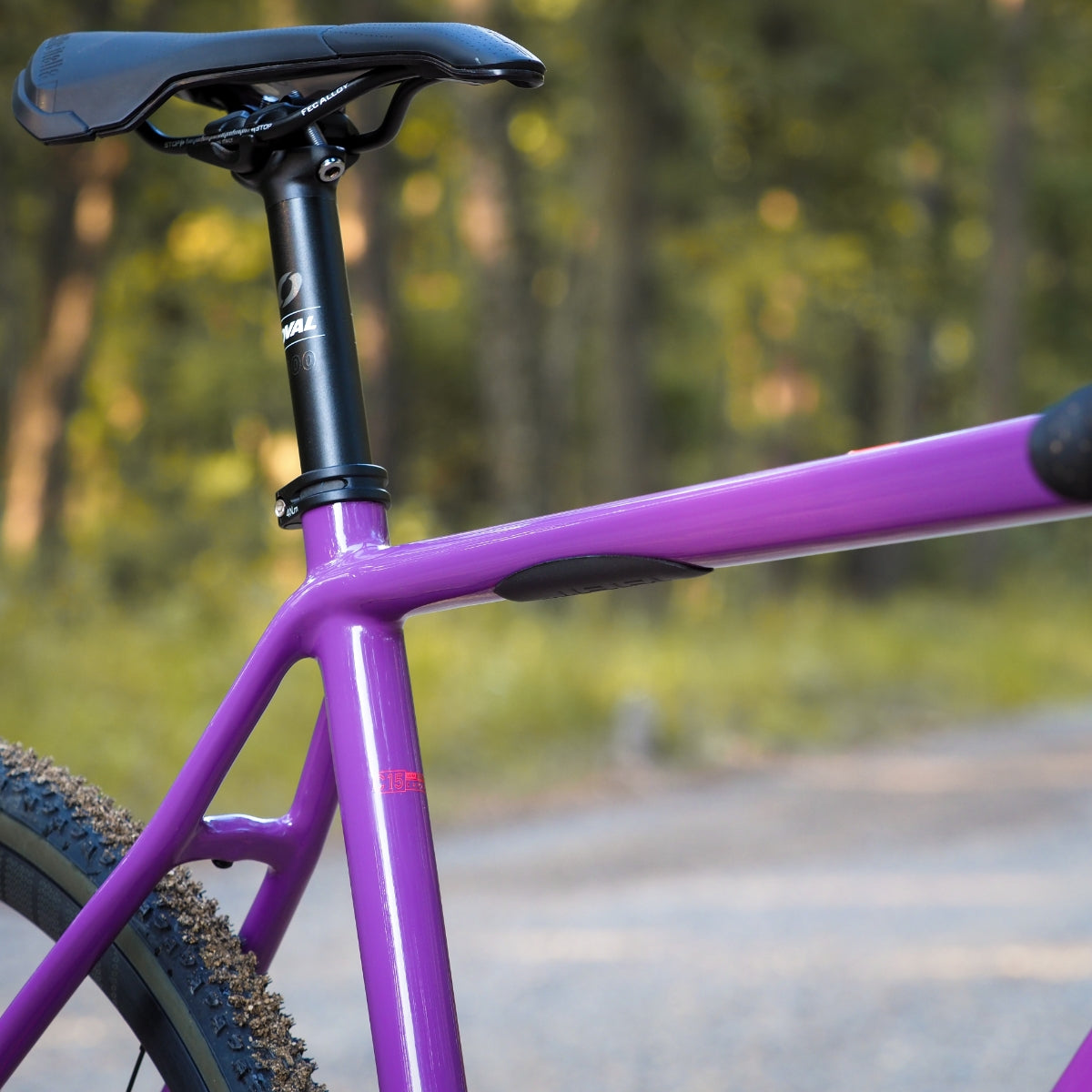

    Seatpost

    Oval Concepts 300, alloy, 27.2mm

*Specifications are subject to change without notice
Geometry
Size XS S M L XL XXL
A Seat Tube Center To Top 490 520 540 560 580 610
B Seat Tube Effective 440 470 490 510 530 560
C Top Tube Effective 520 535 545 560 575 590
D Head Tube Length 110 130 140 160 180 200
E Seat Tube Angle 75° 74° 73.5° 73° 73° 73°
G Headtube Angle 71 71.5 72 72 72 72
H Chainstay Length 425 425 425 425 425 425
I Wheelbase 1009 1011 1011 1021 1037 1058
J Bottom Bracket Drop 66 64 64 64 62 62
K Fork Offset 48 48 48 48 48 48
L Trail 70 66 63 63 63 63
M Stack 535 554 566 580 602 621
N Reach 372 375 378 385 390 405
O Standover 766 794 807 825 844 868
Stem 80 90 90 100 110 110
Handlebar Width 380 400 420 420 440 460
Crank 165 170 172.5 172.5 172.5 175
Wheel Size 700 700 700 700 700 700
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2 27.2
