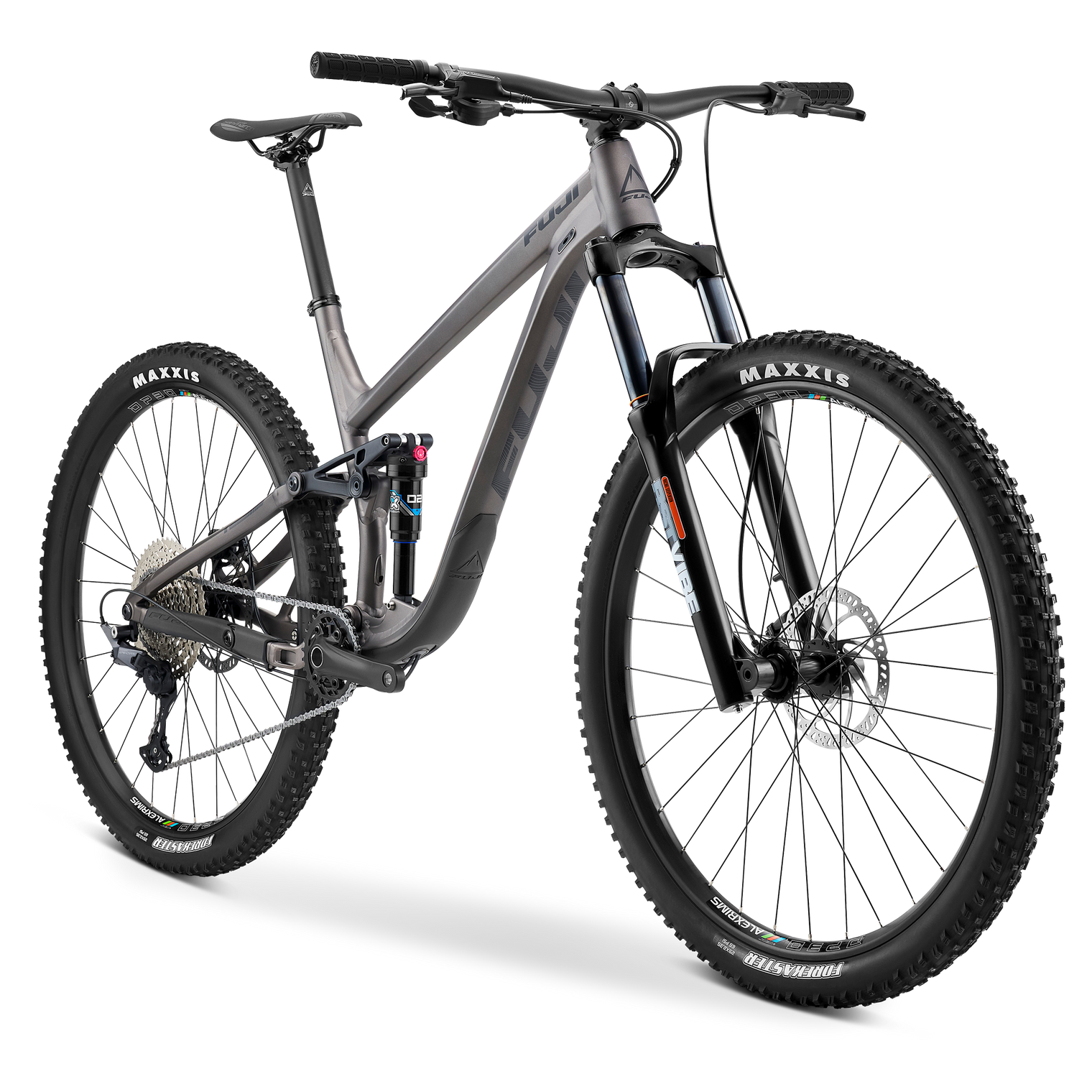

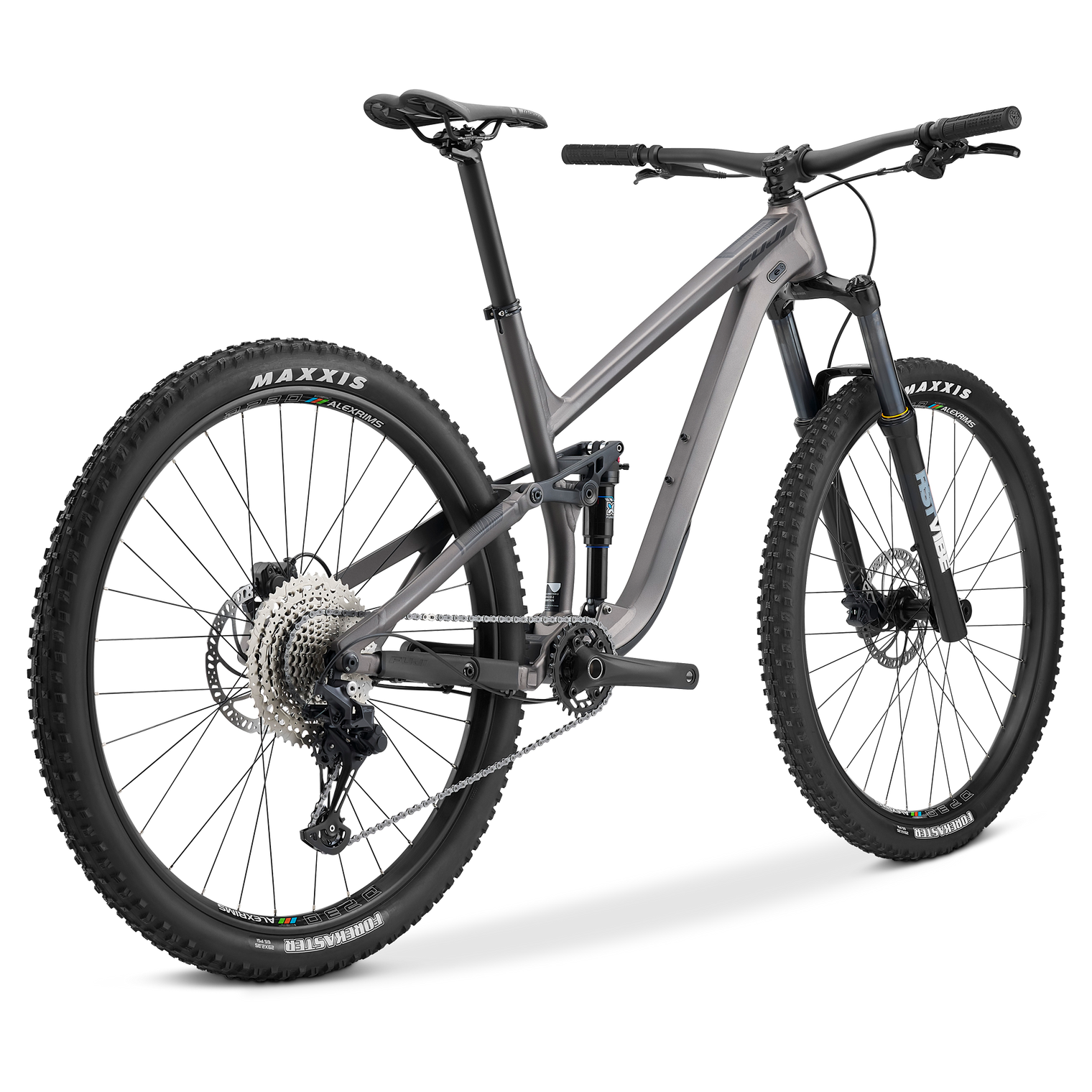

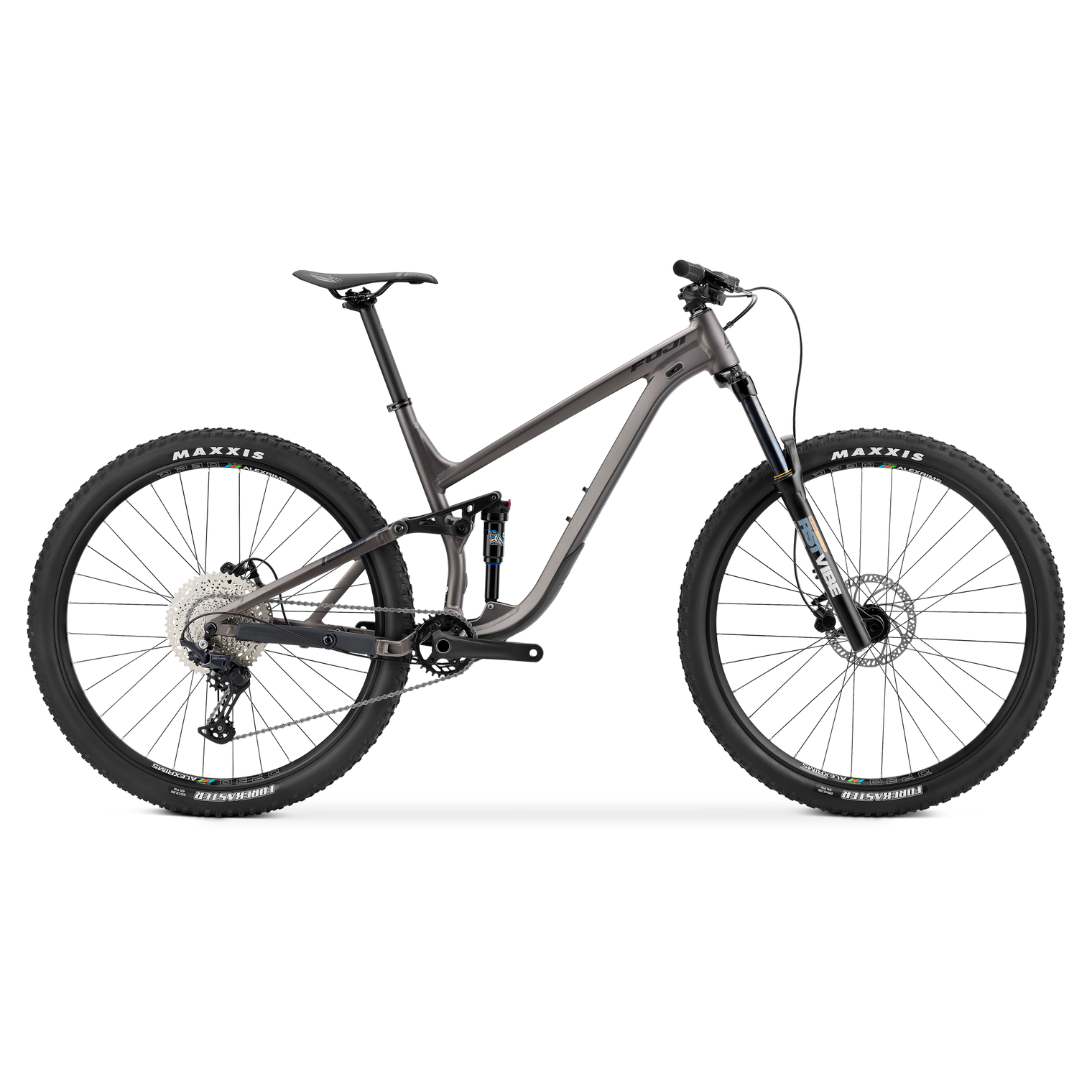

Rakan 29 1.7

$1,999.99 USD
Size Guide
Size
Color: Matte Smoked Silver
Description

The Rakan might be the most efficient pedaling trail bike on the market, with 120mm of MLink® Suspension Design technology, modern geometry and 29-inch wheels make it the obvious choice if you're looking for a do-it-all mountain bike.

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

You may also like

Rakan 29 1.1

$3,999.99 USD

Rakan 29 1.3

$2,999.99 USD
Technical Specifications
  • Sizes

    S, M, L, XL

    Color(s)

    Matte Smoked Silver

    Frame

    Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, UDH, 120mm

    Fork

    RST Vibe 110-15 Air, tapered alloy steerer, Boost 110x15mm, 140mm travel

    Rear Shock

    X-Fusion O2 Pro R

    Crankset

    Prowheel, 30T

    Bottom Bracket

    External cup, threaded

    Rear Derailleur

    Shimano Deore, shadow plus

    Shifters

    Shimano Deore, 1 x 11-speed

    Cassette

    Sunrace, 10-50T

    Chain

    KMC X11

  • Wheelset

    Alex DP30 tubeless ready 32H, Formula DC-511 front hub, DC-3248 rear hub, stainless spokes

    Tires

    Maxxis Forecaster, 29" x 2.35", 60tpi

    Brakeset

    Tektro M275, 180mm rotors

    Brake Levers

    Tektro M275

    Headset

    FSA 1 1/8" - 1.5", sealed cartridge bearings

    Handlebar

    TranzX Riser Bar, alloy, 20mm rise, 780mm

    Stem

    TranzX, alloy, +0° rise

    Grips

    WTB Waffel, Lock on

    Saddle

    Selle San Marco Monza Full Fit Start Up

    Seat post

    Fuji, alloy, 31.6mm

    Weight

    TBD

*Specifications are subject to change without notice
Geometry
SizeSMLXL
Bike Size15"17"19"21"
ASeat Tube, Center To Top380420458495
CTop Tube, Effective590618646668.5
DHead Tube Length100110120130
ESeat Tube Angle 77°76.5°76°76°
GHead Tube Angle65°65°65°65°
HChainstay Length431431431431
IWheelbase1194.912191243.31267.5
JBottom Bracket Drop32323232
KFork Offset 42424242
MStack607.9616.9626635
NReach450470490510
OStandover748.3766.5762.4783
Stem40404040
Handlebar Width780780780780
Crank170170170170
Wheel Size29"29"29"29"
Seat Post Diameter31.631.631.631.6
