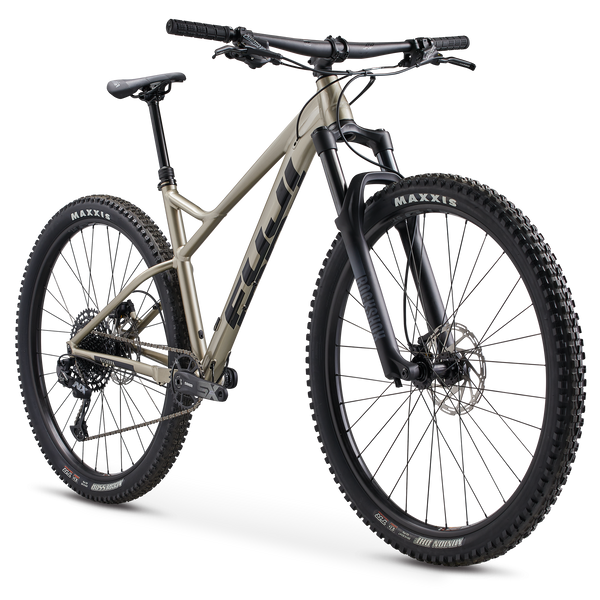

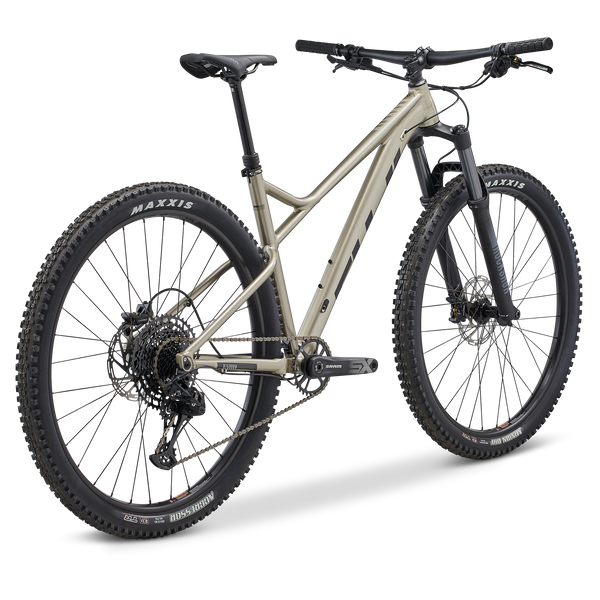

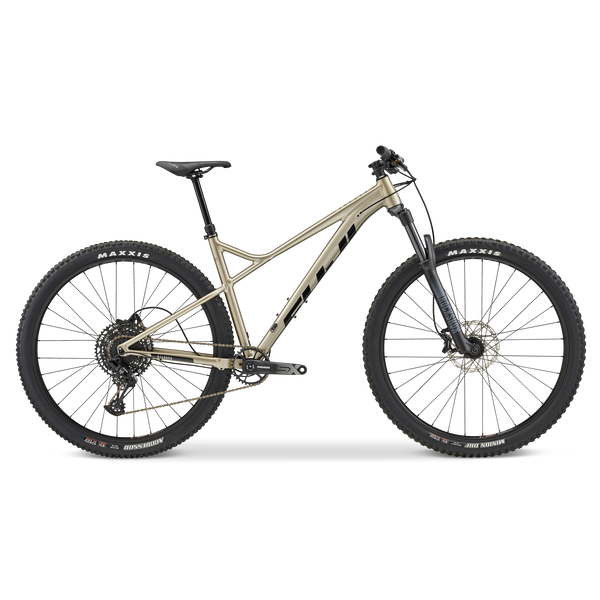

The Bighorn pairs aggressive modern geometry and our lightest alloy frame to create a do-it-all hardtail that is ready to tame just about any trail. Redesigned with 29" wheels, the Bighorn is equipped to roll over obstacles with ease, while a Rockshox suspension fork and disc brakes allow for confident descending and braking.
S, M, L, XL, XXL
Pearl Sand
Fuji A6-SL super-butted alloy, smooth welds, Boost 148x12mm
RockShox 35 Silver TK 29 Solo Air, tapered alloy steerer, Boost 110x15mm, 130mm
SRAM SX Eagle, 32T
SRAM DUB, threaded
SRAM NX Eagle
SRAM SX Eagle, 1 x 12-speed
SRAM PG-1210, 11-50T
SRAM SX Eagle
WTB ST i30 TCS 2.0 32H rims, Formula DC-711 front hub, DC-3248 rear hub, DT Swiss Industry spokes
Maxxis Minion DHF, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding, Maxxis Aggressor, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding
Tetro HD-M745, 180mm rotors
Tetro HD-M745
FSA 1 1/8" - 1.5", sealed bearings
Race Face Ride Riser Bar, alloy, 10mm rise, 760mm
Race Face Ride, alloy, +6° rise
WTB Waffel Lock on
Selle Italia X3 Boost
TranzX JD-YSP18P, 30.9mm, 15" - 130mm travel, 17, 19, 21" - 150mm travel, PLQ Lever
| Size | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Bike Size | 15" | 17" | 19" | 21" | 23" | |
| A | Seat Tube, Center To Top | 381 | 432 | 465 | 513 | 543 |
| C | Top Tube, Effective | 585 | 610 | 635 | 660 | 680 |
| D | Head Tube Length | 90 | 100 | 100 | 110 | 120 |
| E | Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| G | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| H | Chainstay Length | 434 | 434 | 434 | 434 | 434 |
| I | Wheelbase | 1125.9 | 1152.1 | 1177.1 | 1203.3 | 1233.5 |
| J | Bottom Bracket Drop | 55 | 55 | 55 | 55 | 55 |
| K | Fork Offset | 51 | 51 | 51 | 51 | 51 |
| M | Stack | 612 | 621.2 | 621.2 | 630.5 | 639.7 |
| N | Reach | 409.5 | 431.9 | 456.9 | 479.2 | 496.6 |
| O | Standover | 633.4 | 669 | 685.4 | 687.1 | 709.3 |
| Stem | 50 | 50 | 50 | 50 | 60 | |
| Handlebar Width | 760 | 760 | 760 | 760 | 760 | |
| Crank | 170 | 175 | 175 | 175 | 175 | |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | |
| Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
