Current

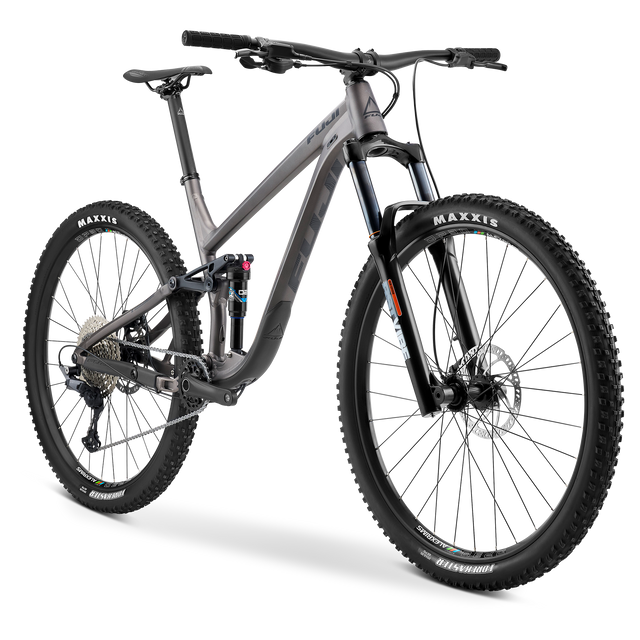

Rakan 29 1.5

  • $2,099.99
    • $2,099.99
  • The Rakan might be the most efficient pedaling trail bike on the market, with 120mm of MLink® suspension, modern geometry and 29" wheels that make it the obvious choice if you can have only one DO-IT-ALL bike in your quiver.

Use the "Where to buy" button below to find a Fuji retailer in your area.

Where to buy

Features

  • A6-SL super-butted alloy frame with 120mm of MLink rear suspension
  • RockShox Recon RL 29 Solo Air fork has 130mm of travel
  • RockShox Deluxe RL rear shock
  • Shimano 1x10 system with Deore Shadow-plus rear derailleur, Deore Rapid Fire shifters, 11-42T cassette and a FSA Gamma Pro 30-tooth crankset
  • Shimano hydraulic brakes and large 180mm rotors
  • Internal cable routing provides clean aesthetics and protects cables from dirt and debris
  • KS LEV dropper post provides on-trail saddle height flexibility
  • 29” wheels with Shimano hubs and WTB ST i29 tubeless-compatible rims
  • Maxxis Minion DHF 29 x 2.3” tubeless-ready tires.

Technology

A6-SL Super Butted Aluminum

Fuji's lightest and strongest aluminum frame material that has multiple butting profiles in the frame tubes and reduces material in low stress areas which creates a lighter frame without sacrificing frame stiffness and durability.

Disc brakes for all models

Disc brakes take less effort at the lever for better modulation and improved braking performance, particular for smaller hands.

Boost Hub Spacing

Boost hub spacing is a wider hub standard, 110m front and 148mm rear.  These wider hub flanges help to create stiffer wheels as well as improve frame geometry by allowing shorter chainstays with clearance for larger volume tires.

Metric Shock Sizing

A new shock sizing standard that simplifies rear shock sizing and fitment while also providing improved shock performance.  Increased bearing overlap improves the interface between the piston and shock body, which essentially eliminates binding in the rear shock creating a smoother, more compliant shock.

English Threaded Bottom Bracket

Threaded bottom brackets are easy to replace and are significantly quieter than press fit.

Internal Cable Routing

Internal cable routing provides smooth shifting and a clean aesthetic.

M Link Suspension Design

MLink™ is a four-bar suspension system, with the chainstay pivot positioned in the middle of the chainstay. This balanced design provides a smooth and efficient system with less flex, less binding, and less bearing and pivot stress.

Specifications

Sizes

S (15"), M (17"), L (19"), XL (21")

Color(s)

Frame

Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 120mm

Fork

RockShox Recon RL 29 Solo Air w/ tapered alloy steerer, Boost 110x15mm, 130mm travel

Rear Shock

RockShox Deluxe Select R

Crankset

FSA Gamma Pro, 30T

Bottom Bracket

FSA Mega EXO, threaded

Rear Derailleur

Shimano Deore, shadow plus

Shifters

Shimano Deore, Rapid Fire, 1 x 10-speed

Cassette

Shimano HG-500, 11-42T

Chain

KMC X10

Wheelset

WTB ST i29 TCS 2.0 32H, Shimano MT400 front hub, MT400 rear hub, stainless black spokes

Tires

Maxxis Minion DHF, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding, Maxxis Aggressor, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding

Brakeset

Shimano MT200, 180mm rotors

Brake Levers

Shimano MT201

Headset

FSA 1 1/8" - 1.5", sealed cartridge bearings

Handlebar

Race Face Ride Riser Bar, alloy, 10mm rise, 760mm

Stem

Race Face Ride, alloy, +6° rise

Grips

WTB Waffel, Lock on

Saddle

WTB Volt Comp

Seat post

KS Rage-i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Westy Lever

Accessories

X

Geometry

Size S M L XL
Bike Size 15" 17" 19" 21"
A Seat Tube, Center To Top 380 420 458 495
C Top Tube, Effective 598.4 626.2 654.3 676.8
D Head Tube Length 90 100 110 120
E Seat Tube Angle 76° 75.5° 75° 75°
G Head Tube Angle 66° 66° 66° 66°
H Chainstay Length 431.2 431.2 431.2 431.2
I Wheelbase 1176.8 1200.7 1224.8 1248.9
J Bottom Bracket Drop 32 32 32 32
K Fork Offset 42 42 42 42
M Stack 595 604.2 613.3 622.4
N Reach 450 470 490 510
O Standover 742 754.3 757.5 771.5
Stem 40 40 40 40
Handlebar Width 760 760 760 760
Crank 170 170 170 170
Wheel Size 29" 29" 29" 29"
Seat Post Diameter 31.6 31.6 31.6 31.6
Size Guide
Size* Rider Height
S
 5'2"-5'7" 157cm-170cm
M
 5'6"-5'9" 168cm-175cm
L
 5'9"-6'1" 175cm-185cm
XL
 6'0"-6'5" 173cm-195cm

*Suggested sizes shown. For the most accurate sizing please visit your local authorized Fuji retailer for a bike fit and a test ride.
