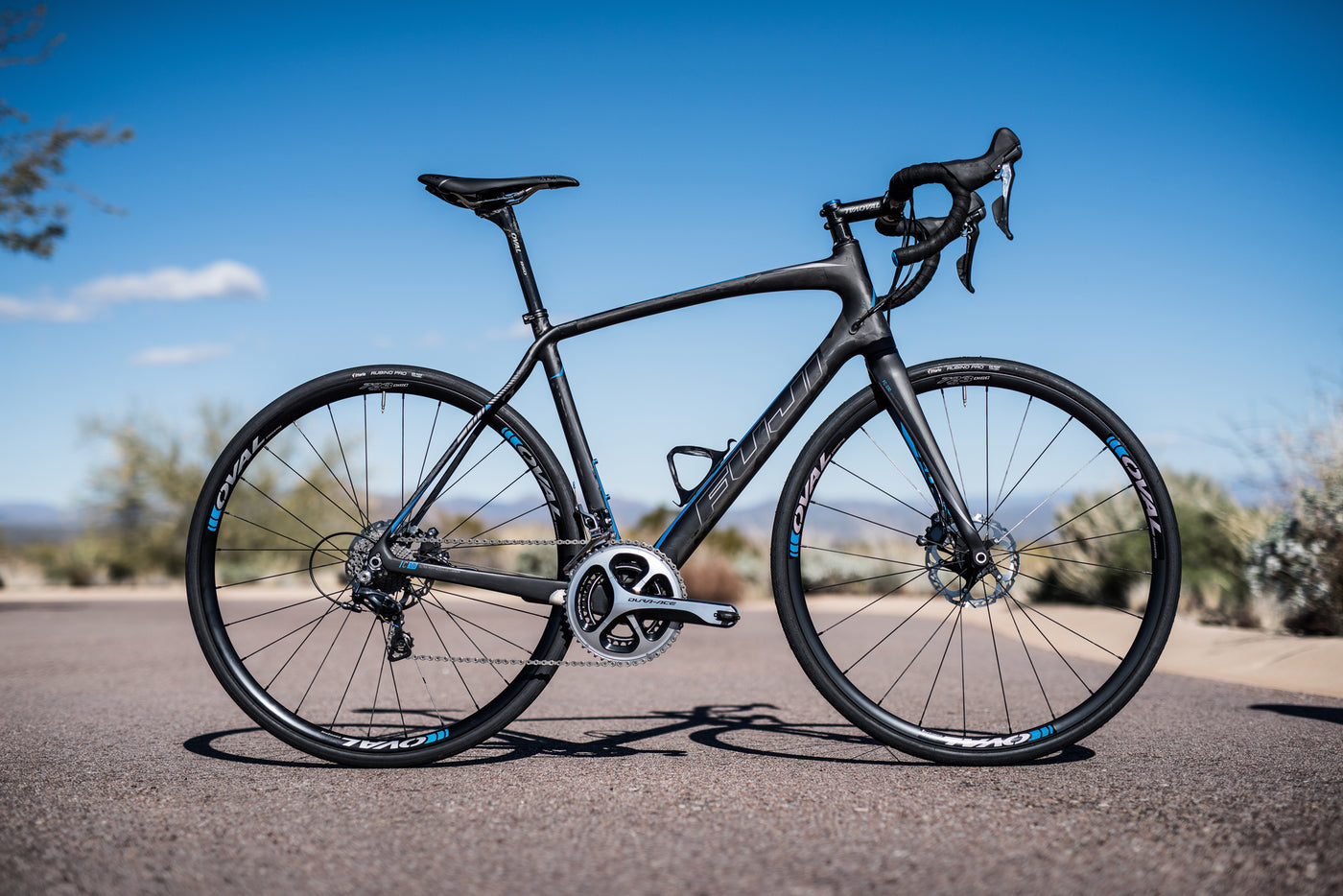

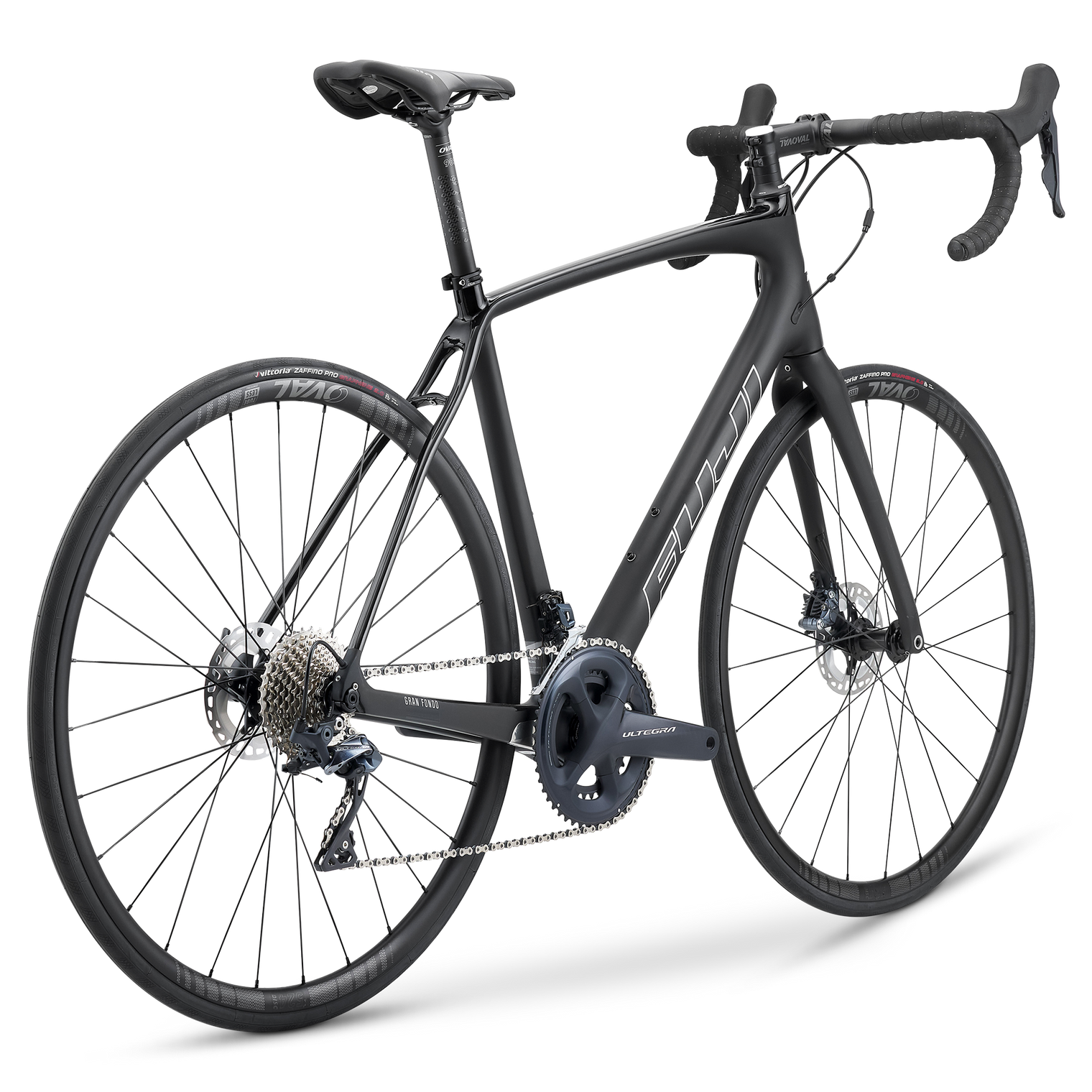

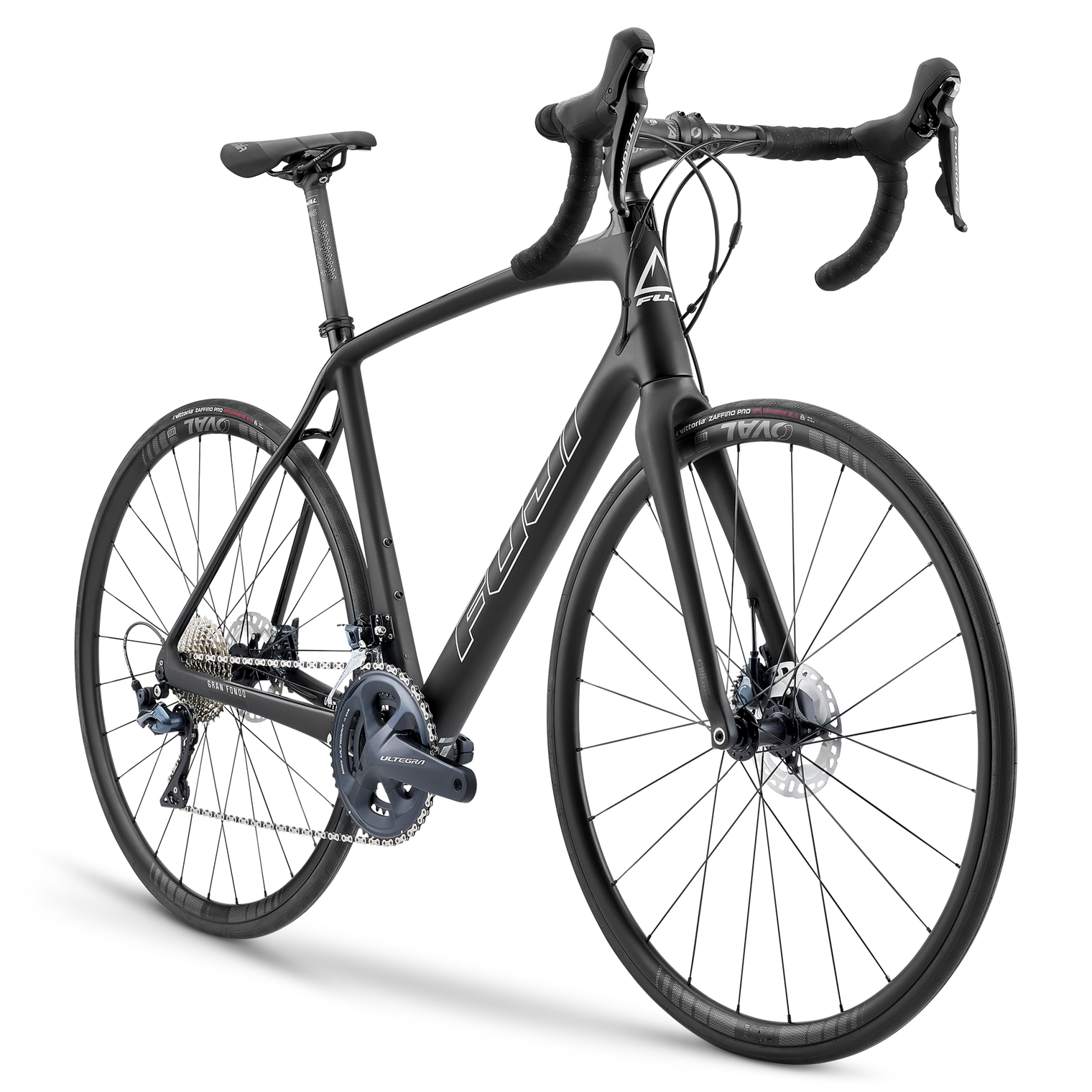

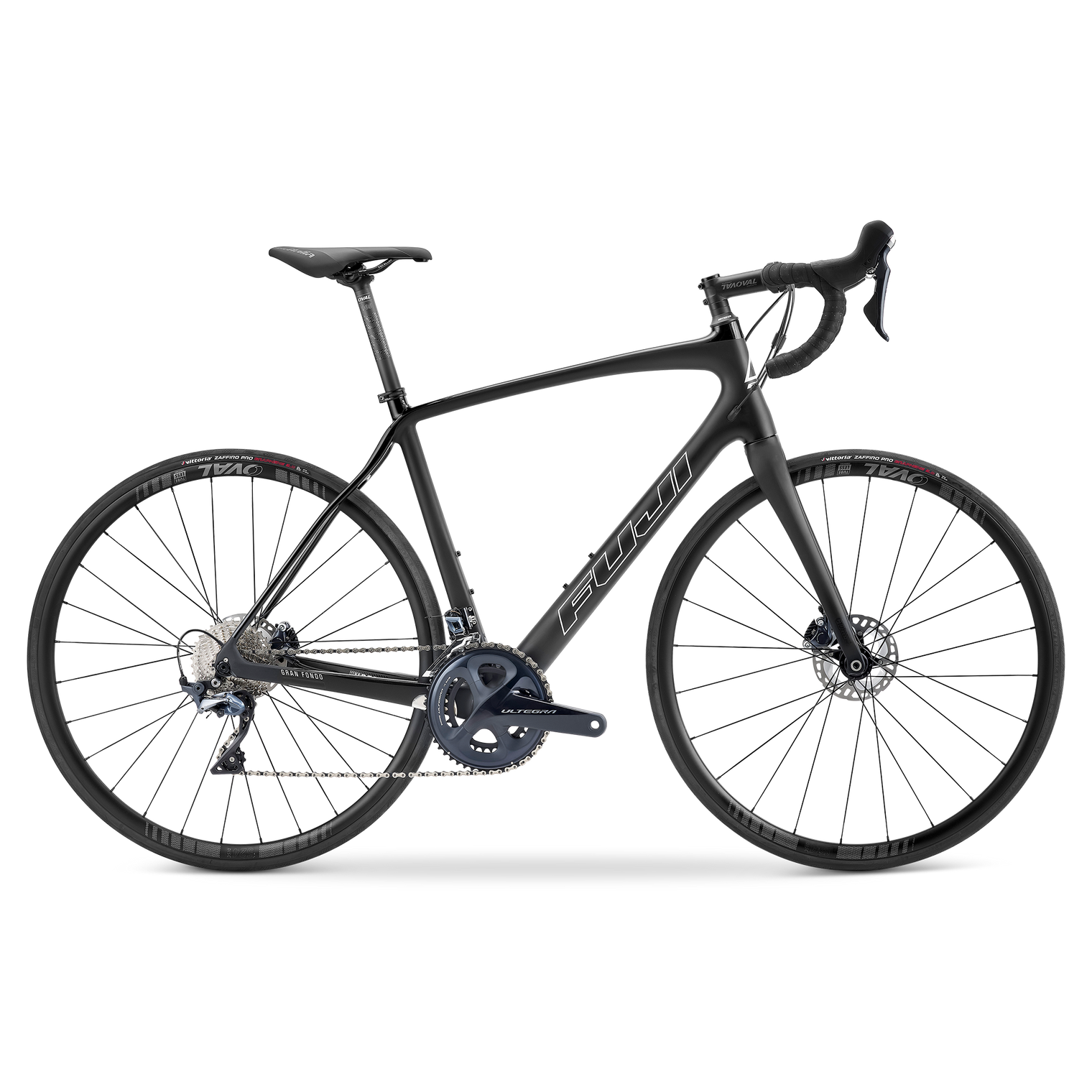

Gran Fondo 1.1
Description
The Gran Fondo is built to keep you rolling smooth and fast on all-day rides no matter what the road conditions are. While designed for the long haul, it equally provides comfort on climbs and confidence coming down. The Gran Fondo's high-modulus carbon frame with Vibration Reduction Technology will keep you isolated from road noise so you can ride strong mile after mile.
Shipping and Returns
SHIPPING
All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.
SHIP TO HOME RETURNS
Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.
SHIP TO STORE RETURNS
Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.
Technical Specifications
Geometry
| Size | XXS(46cm) | XS(49cm) | S(52cm) | M(54cm) | L(56cm) | XL(58cm) | XXL(61cm) | |
| A | Seat Tube Center To Top | 420 | 450 | 480 | 500 | 520 | 540 | 570 |
| B | Seat Tube Effective | 460 | 490 | 520 | 540 | 560 | 580 | 610 |
| C | Top Tube Effective | 505 | 515 | 530 | 545 | 560 | 580 | 600 |
| D | Head Tube Length | 100 | 125 | 150 | 170 | 190 | 215 | 235 |
| E | Seat Tube Angle | 75° | 74.5° | 73.75° | 73.5° | 73° | 73° | 73° |
| G | Headtube Angle | 71 | 71.5 | 71.5 | 73 | 73 | 73 | 73 |
| H | Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| I | Wheelbase | 984 | 987 | 990 | 984 | 993 | 1013 | 1033 |
| J | Bottom Bracket Drop | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
| K | Fork Offset | 52 | 52 | 52 | 43 | 43 | 43 | 43 |
| L | Trail | 61.7 | 58.6 | 58.6 | 58.7 | 58.7 | 58.7 | 58.7 |
| M | Stack | 506 | 531 | 557 | 582 | 602 | 625 | 645 |
| N | Reach | 369 | 368 | 368 | 373 | 376 | 389 | 403 |
| O | Standover | 708 | 736 | 764 | 788 | 808 | 829 | 853 |
| Stem | 80 | 90 | 90 | 100 | 100 | 120 | 120 | |
| Handlebar Width | 380 | 400 | 400 | 420 | 420 | 440 | 440 | |
| Crank | 165 | 170 | 170 | 172.5 | 172.5 | 175 | 175 | |
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
