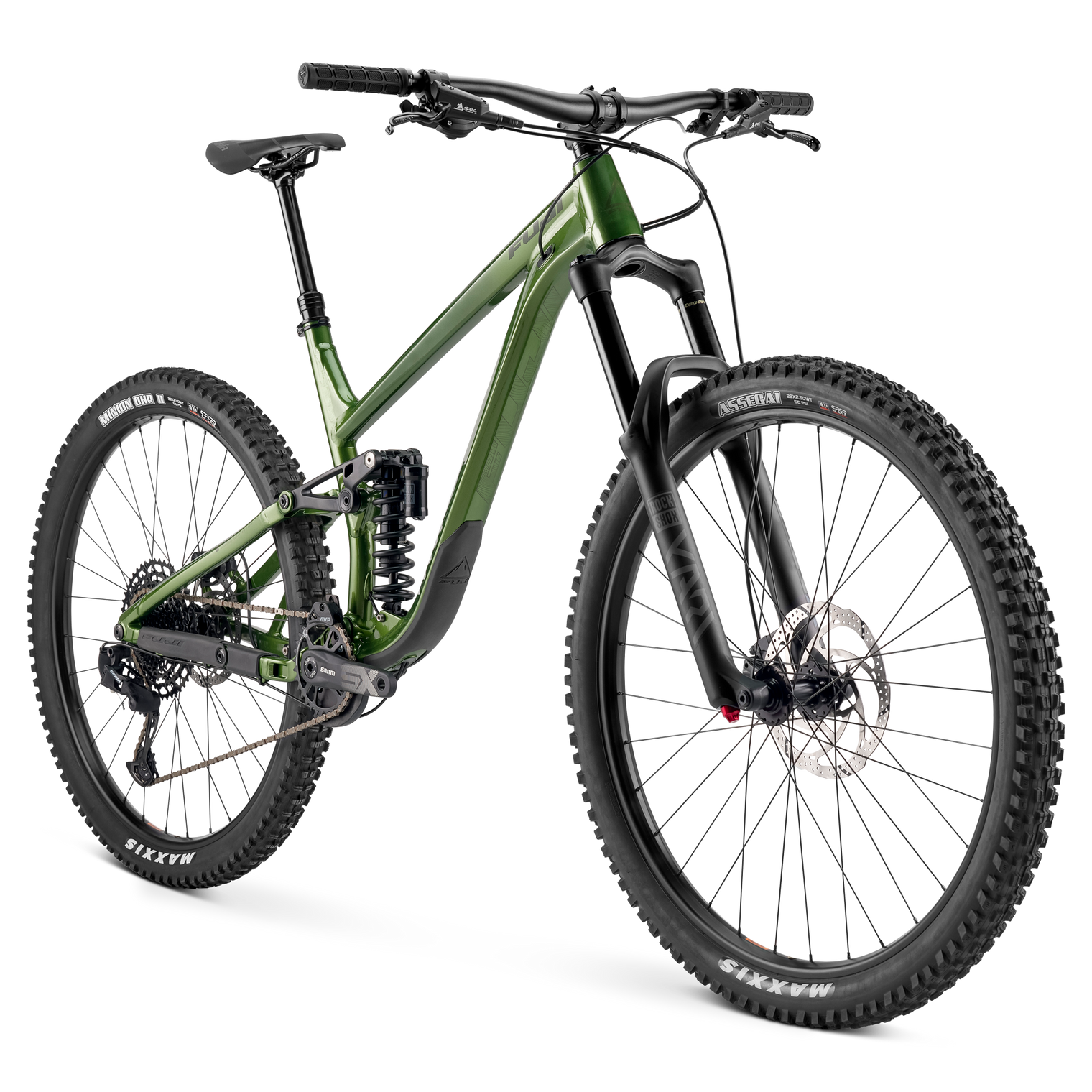

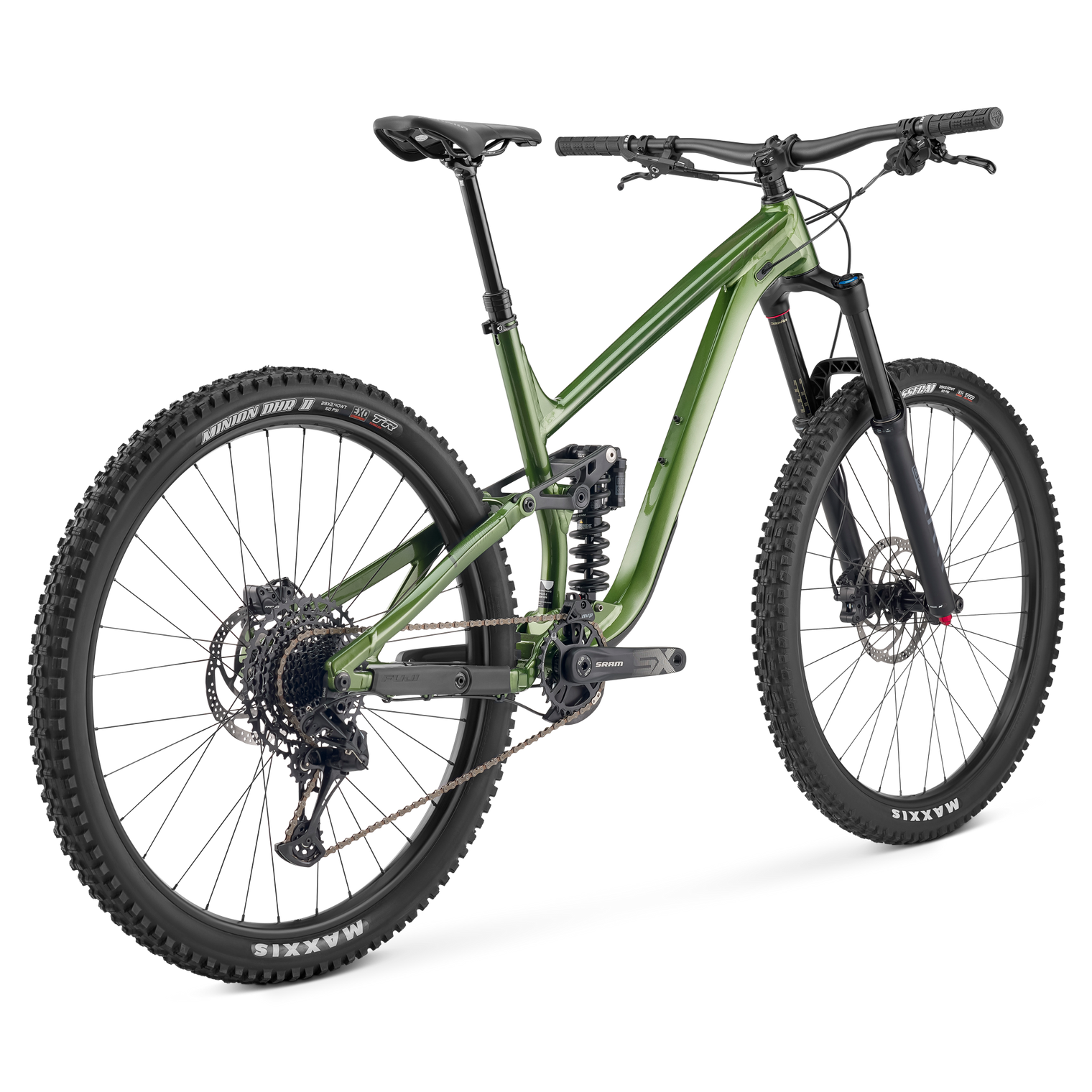

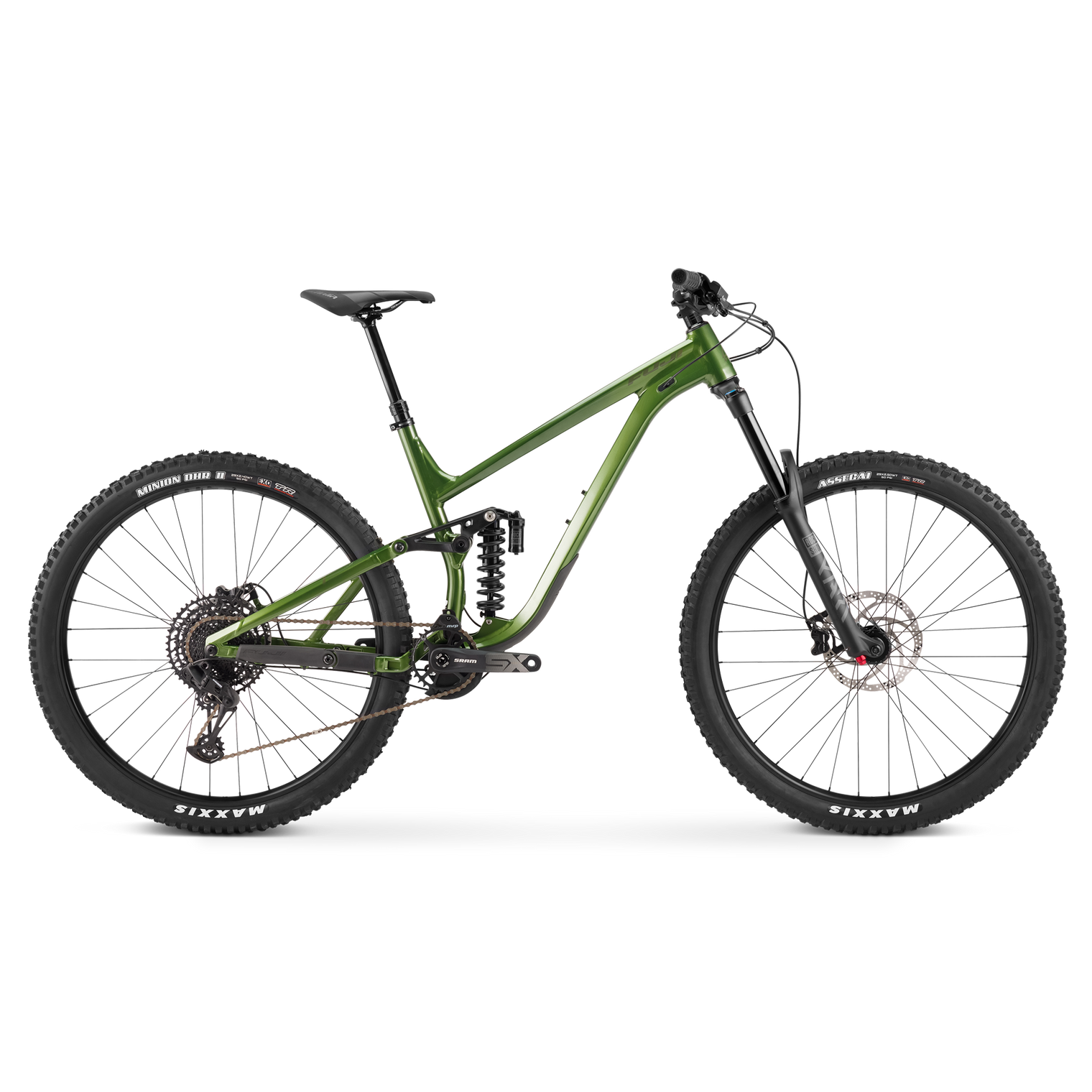

Rakan 29 LT 1.5

$2,999.99 USD
Size Guide
Size
Color: Metallic Moss Green
Description

We took one of the most efficient trail bikes on the market and cranked up the travel to help riders tackle tougher trails with more confidence and comfort. The Rakan LT offers a 160mm travel fork and is coupled with 150mm of travel in the rear with Fuji’s MLink® Suspension Design technology that offers small bump sensitivity, while handling the bigger bumps on the trail with ease. Boost 148 rear spacing increases the stiffness, ensuring maximum power transfer and cornering precision - making this the perfect all mountain and enduro bike.

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

Technical Specifications
  • Sizes

    S, M, L, XL

    Color(s)

    Metallic Moss Green

    Frame

    Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, UDH, 150mm

    Fork

    RockShox Yari RC 29 DebonAir, tapered alloy steerer, Boost 110x15mm, 42mm offset, 170mm

    Rear Shock

    RockShox Super Deluxe Coil Select

    Crankset

    SRAM SX Eagle, 32T

    Bottom Bracket

    SRAM DUB, threaded

    Rear Derailleur

    SRAM SX Eagle

    Shifters

    SRAM SX Eagle, 1 x 12-speed

    Cassette

    SRAM PG-1210, 11-50T

    Chain

    SRAM SX Eagle

  • Wheelset

    WTB ST i30 TCS 2.0 32H, Formula DC-711 front hub, DC-3248 rear hub, DT Swiss Industry stainless spokes

    Tires

    Maxxis Assegai, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding, Maxxis Minion DHR II, 29" x 2.40" WT, 60tpi, EXO, Tubeless Ready, folding

    Brakeset

    TRP Slate EVO, 203/180mm rotors

    Brake Levers

    TRP Slate EVO

    Headset

    FSA 1 1/8" - 1.5", sealed cartridge bearings

    Handlebar

    TranzX Riser Bar, alloy, 20mm rise, 780mm

    Stem

    TranzX, alloy, +0° rise

    Grips

    WTB Waffel, Lock on

    Saddle

    Selle Italia X3 Boost

    Seat post

    TranzX JD-YSP18P, 31.6mm, 15" - 130mm travel, 17, 19, 21" - 150mm travel, PLQ Lever

    Accessories

    MRP AMg V1 Chainguide

    Weight

    TBD

*Specifications are subject to change without notice
Geometry
Size S M L XL
Bike Size 15" 17" 19" 21"
A Seat Tube, Center To Top 380 420 458 495
C Top Tube, Effective 586 613 641 663.5
D Head Tube Length 90 100 110 120
E Seat Tube Angle 77.5° 77° 76.5° 76.5°
G Head Tube Angle 63.5° 63.5° 63.5° 63.5°
H Chainstay Length 435.8 435.8 435.8 435.8
I Wheelbase 1224 1248 1273 1298
J Bottom Bracket Drop 27 27 27 27
K Fork Offset 42 42 42 42
M Stack 612 621 630 639
N Reach 450 470 490 510
O Standover 747.8 760.7 763.5 760
Stem 40 40 40 40
Handlebar Width 780 780 780 780
Crank 170 170 170 170
Wheel Size 29" 29" 29" 29"
Seat Post Diameter 31.6 31.6 31.6 31.6
