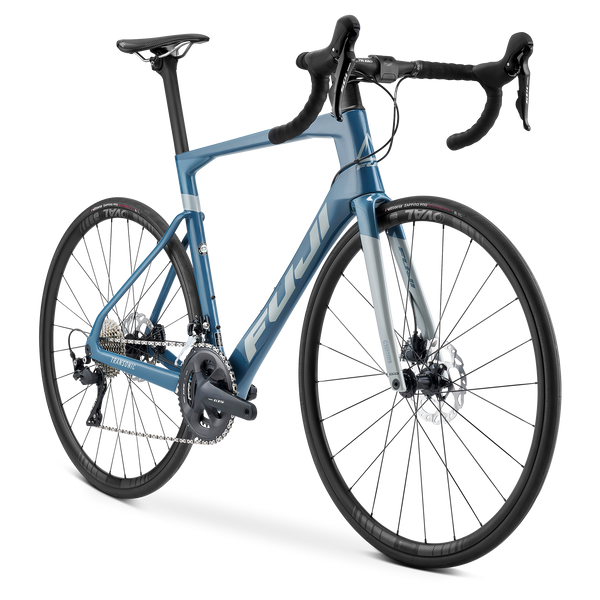

Transonic 2.3

Name: Transonic 2.3
Brand: Fuji Bikes
SKU: 19221030449
Price: 3499.99 USD
Availability: OutOfStock

$3,499.99 USD

Size Guide

Size

Color: Stone Blue

Stone Blue

This product is unavailable

Product Locator by Locally

Description

Transonic flight pushes the envelope of the speed of sound. Aboard Fuji’s flagship aero road bike, take flight as revolutionary linear frame design meets engineering and integration. Effortlessly accelerate towards the upper reaches of speed and performance a bike can offer.

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

Learn More

Sizes

XXS (46cm), XS (49cm), S (52cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)

Color(s)

Stone Blue

Frame

C10 high-modulus schedule process. High compaction molding. Aero optimized integration. PF30 BB, 142x12 thru-axle.

Fork

C10 high-modulus schedule process. High compaction molding. Aero optimized integration. 100x12mm thru-axle

Crankset

Shimano 105 or FSA Gossamer Pro, 50/34T

Bottom Bracket

Praxis PF30 M24

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105

Shifters

Shimano 105 Dual Control, 2 x 11-speed

Cassette

Shimano 105, 11-30T

Chain

KMC X11
Wheelset

Oval Concepts 524 Disc, 24/28H

Tires

Vittoria Zaffiro Pro V, G2.0, 700 x 28c

Tubes

700 x 28 presta

Brakeset

Shimano 105, hydraulic disc, 160mm rotor

Brake Levers

Shimano 105, hydraulic disc

Headset

FSA, 1 1/4" upper - 1 1/2" lower, integrated

Handlebar

Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep

Stem

Oval Concepts 313, 3D-forged 6061, +/-6°

Tape

Selle Italia Smootape Corsa

Saddle

Selle Italia X Base

Seatpost

Transonic Aero Carbon

*Specifications are subject to change without notice

Geometry

	Size	XXS (46cm)	XS (49cm)	S (52cm)	M (54cm)	L (56cm)	XL (58cm)	XXL (61cm)
A	Seat Tube Center To Top	440	457	484	503	520	538	567
B	Seat Tube Effective	460	490	520	540	560	580	610
C	Top Tube Effective	500	515	537	552	565	581	600
D	Head Tube Length	93	109	129	145	166	183	203
E	Seat Tube Angle	74.75°	74.3°	74.2°	74.2°	73.5°	73.5°	73°
G	Headtube Angle	70.6	71	72	72.7	73	73	73
H	Chainstay Length	410	410	410	410	410	410	410
I	Wheelbase	971.3	982	988	989	999	1016	1030
J	Bottom Bracket Drop	73	70	70	68	68	66	66
K	Fork Offset	52	52	52	43	43	43	43
L	Trail	63.722368736915	61.214294063555	54.984361818216	60.082085514116	58.219359463351	58.219359463351	58.219359463351
M	Stack	487	500	523	541	562	576.5	596
N	Reach	367	374	382	392	399	410	418
O	Standover	730	747	772	788	806	824	846
	Stem	70	90	90	100	110	120	120
	Handlebar Width	380	400	400	420	420	440	440
	Crank	165	170	170	172.5	172.5	175	175
	Wheel Size	700	700	700	700	700	700	700
	Seat Post Diameter	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Looking for a different bike?

Find Your Fuji

Size	XXS / 46	XS / 49	S / 52	M / 54	L / 56	XL / 58	XXL / 61
Inch	4'11" - 5'2"	5'0" - 5'4"	5'3" - 5'7"	5'6" - 5'10"	5'9" - 6'0"	5'11" - 6'2"	6'1" - 6'5"
CM	150 - 157	152 - 163	160 - 170	168 - 178	175 - 183	180 - 188	185 - 196
